M701A 30m serial port Laser Distance Sensor Short Range Module 1mm
Repeatability
Description:
JRT Laser Distance Sensor Short Range Moudle can measure 20m,30m,
even close to 40m. Short Range Laser Distance Module size is very
tiny with 45x25x12mm,which can be equipped on many different
applications. JRT Laser Distance Sensor Short Range feature is
smallest size,weight 10g ,faster response, and it supports
9600bps,19200bps baud rate.
If you want to put a tiny laser distance sensor module in your
device ,do miss this powerful ,multi-functional smart Distance
Sensor Short Range,it must be good.
Distance Sensor Short Range Feature:
1. Good for Industrial Application Measurement System
2. Support single measurement/continous measurement
3. Data output: RXTX, USB, RS232, RS485, Bluetooth optional
Specifications of Distance Sensor Short Range:
| Brand Name | JRT |
| Product Name | Distance Sensor Short Range |
| Model Number | M701A |
| Certification | FDA/ISO9001/CE/FCC/ROHS |
| Place of Origin | China |
| Accuracy | ±1 mm (0.04 inch) |
| Measuring Unit | meter/inch/feet |
| Measuring Range (without Reflection) | 0.03-30m |
| Measuring Time | 0.125~4 seconds |
| Laser Class | Class II |
| Laser Type | 635nm, <1mW |
| Size | 45*25*12mm (±1 mm) |
| Weight | About 10g |
| Voltage | DC2.0~3.3V |
| Electrical Level | TTL/CMOS |
| Frequency | 3HZ~8Hz |
| Operating Temperature | 0-40 ℃ (32-104 ℉ ) |
| Storage Temperature | -25~60 ℃ (-13~140 ℉) |
| Packaging | Neutro-packing |
1. Under bad measure condition, like environment with strong light
or the diffuse reflectance of measuring point over-high or low, the
accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please
use a reflector.
3. 60m can be customized.
4. Voltage can be changed by power converter LDO
5. Frequency would be affected by environment.
6. Operating temperature -10 ℃~50 ℃ can be customized.
7. Analog can be customized.

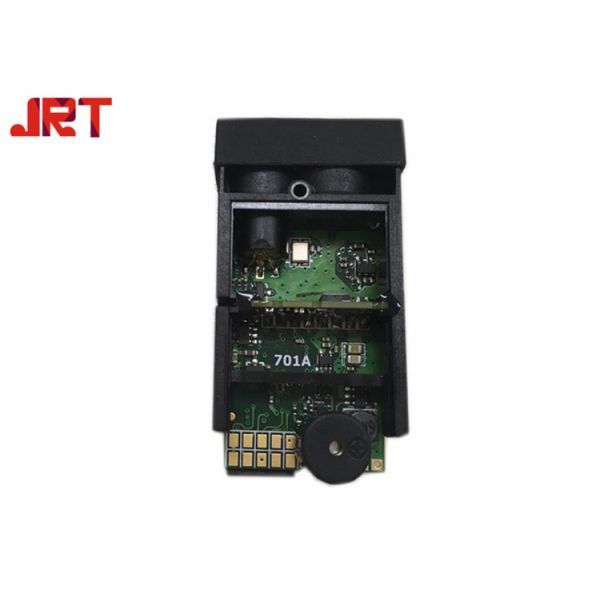

Product Pictures
Why Us?
1mm Resolution
High accuracy+-1mm without reflection. World's advanced single
transmitting single receiving technology of making laser module,
which greatly reduced cost and power consumption.
41*17*7mm
Smallest size in the world, Strong range finding ability and
industrial stability.
15 years R&D Experiences
We are manufacturer ,accepting OEM & ODM and helping customers to
explore different secondary solution, providing continuous
technical support and 12 hours response after-sales service for
users.
3,000,000 pieces per year
We sold more than 1 million pieces in 2017, about 2 million pieces
in 2018, it must be exceed this quantity next year. Thanks to the
introduction of new automatic machines, our production capacity is
2 million now.
About Us
Founded in 2004, Chengdu JRT Meter Technology Co.,Ltd. is an enterprise specializing in the production and development of
laser distance module industry and trade. It is a manufacturer
possess of the world's advanced laser technology single transmit
and single receive.
JRT insist on developing and producing laser distance modules with
better quality, smaller size, but more favorable prices.We can do
OEM /ODM designs and customize product functions as customer
required.
Three production line: laser distance meter module;Industrial laser distance sensor;
laser range finder.
FAQ
Q1: What’s the delivery time after an order placed for this sample
Laser Distance Sensor?
A1: Our standard delivery is 3 days if we have stock, otherwise we
will let you know in time. Usually we can manufacture 10,000pcs of
laser distance modules a day and 2,000pcs LDM.
Q2: What’s the MOQ?
A2: Regular products only 1pcs, OEM/ODM products need 1000pcs at
least.
Q3: What’s the warranty?
A3: All our products have one year guarantee and a life-time after
sales service.
Q4: Can I have a sample for testing?
A4: Yes. We do not offer free samples, but will reimburse the buyer
once an order is confirmed.
After-sale sercice
a. Lifetime warranty for software
b. 1 year warranty
c. Lifetime Technical support
Cooperation Terms
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 10,000pcs per day |
| Delivery Time: | 1~3 working days after received your payment |
| Packaging Details: | Packed in Neutro-packing |
Application Area
JRT Laser Distance Sensor Module already widely used in many
industrial area, like robot, warehouse logistics, safety system,
Railway Monitoring, Agricultural Automation, construction,
Industrial Automation, Intelligent Transportation, Truck
Height,Drone, Archery, Engineering Survey, Golf, Interior Finish,
Sports, Engineer,3D laser printer, crane, radar, lidar etc.
Competitive Advantage:
1. Leading laser technology
2. Wholesale price
3. We can do OEM designs and customize product functions as
customer required.
4. Support customize laser distance measure solution for you.
About Module's Model:
| Product Name | JRT Industrial Laser Distance Sensor |
| Old Version Model No. | M512A/M701A/M703A |
| Latest Version Model No. | M88B |
| Data Interface Optional | Serial port/USB/RS232/RS485/Bluetooth |
